FTTmdu enables next-generation access networks that deliver MultiGigabit broadband services, helping service providers to deploy broadband networks at a fraction of the cost of traditional FTTH deployments. It is especially important for areas where optical fiber cannot be deployed due to limitations on construction, lack of ducts, apartment or building accessibility, technical or historical preservations reasons.
The main objective of FTTmdu is to re-use coax infrastructure to extend fiber gigabit services with minimal construction work. FTTmdu is typically deployed near the end-user either outside or inside the building depending of available coaxial infrastructure. The Intercept EO DPU/Network Controller is located at the FTTmdu where it connects the fiber to the coax in-building network.
1 Port
16 + 15 Subscribers per port
up to 31 subscribers
4 Port
16 + 15 Subscribers per port per 1 port
up to 124 subscribers
8 Port
16 + 15 Subscribers per port per 1 port
up to 248 subscribers
Map It Out
Centrally Locate your Switch
Run Fiber to Every Building
Install the Intercept Network Controller DPU device at Every Building
Use/Re-use the existing coax in each of the apartment buildings.
Gigabit
Coax in Building System
The Intercept™ EO solution delivers Multigigabit data rates over existing legacy coaxial cabling for rapid and economical
deployment in MDU, enterprise or campus environments.
Capable of data rates of up to 2.5 Gbps downstream and up to 2 Gbps in the upstream, EO is highly competitive with FTTH services, at a fraction of the cost of an all fiber solution relative to installation cost. The EO suite of network controllers provides full featured functionality and management capabilities for intuitive subscriber management and superior QoE, time to market and rapid activation and implementation of revenue generating services.
Designed specifically for MDU applications where coaxal cabling is present, the EO system can be implemented in a P2P or P2MP delivery design, and can be routed through the EO CPE device to Wireless router or WiFi mesh for reliable high speed data coverage throughout the entire premise environment, reducing truck rolls related to inferior data coverage within the home or business
XGS-PON is an updated PON standard that can support 10 Gbps symmetrical data transfer and is part of the GPON family of standards known as Gigabit-capable PON.
In MDU and MTU deployments the in-building fiber installations are challenging, and Fiber Access Extension solve this intra building connectivity over coaxial networks. Cost of deploying fiber from entry point to each MDU unit can be up to 40% of the cost of deploying the Fiber-To-The Building.
The Broadband Forum Technical Report, TR-419 – Fiber Access Extension over existing coaxial Infrastructure, addresses MoCA Access™ technology to extend the fiber services. This is based on its existing TR-301 which defines functionality for a Distribution Point Unit (DPU).
The Intercept EO Network Controller technology symmetrically communicates with 2.5 Gbps on each coax DPU/Controller RF channel.
Versatile Fiber to the MDU design supports up to 31 subscribers per RF port.
Up to 2.5 Gbps DS and 2 Gbps US in building solution.
Uses existing coax infrastructure and cabling.
Compatible with legacy passives up to 1675 MHz
MoCA Access transport 600 MHz – 1675 MHz
Highly loss tolerant @ 55 dB link budget
Intuitive cloud management tool/GUI
Fastest time to market for Gigabit services
Installs quickly and easily
Fractional cost compared to FTTH
Tailored for - MDU - Campus - Enterprise - Small Broadband systems
Point to point or Point to Multipoint applications

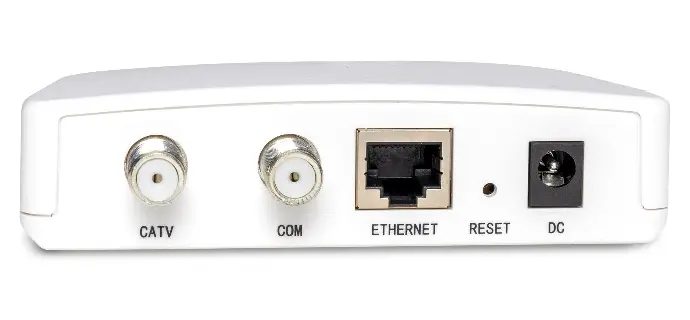

Available in 1, 4 and 8 port o Low cost and compact 2.5Gb CPE
MoCA SFP+ form factor 1 & 2.5 Gb
G.hn twisted pair available.
10G Fiber \ 2.5 G Coax
Cloud Controller
The Intercept Network Controller 10G Layer 3 Enterprise Grade switch is designed to make IP/IoT deployments simple, secure, and cost-effective. It delivers up to 2.5 Gbps symmetrical, full-duplex, over coax cabling with up to 1,000ft.*

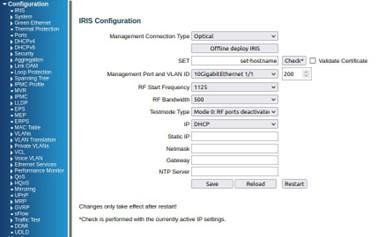

The Intercept Network Controller enables Modern LAN principles and comes standard with 2 x SFP+ 10Gb/s uplink ports, dedicated management and console ports, up to 8 x 2.5 Gbps downlink ports, The Intercept Network Controller 10G switch also comes with a new and intuitive GUI interface, ideal for any cloud or premise-based managed service offering. The new and improved CLI (Command Line Interface) is very similar to the Cisco offering for ease of use.
Benefits Include:
- Accelerate your return on investment by reducing infrastructure costs.
- Simplify your IP modernization, collapsing planning and deployment time.
- Eliminate infrastructure barriers, risks, disruption, and costs.
- Create a robust, secure IP platform that is easy to deploy and manage.
- Be environmentally responsible during your IP upgrades.
Speed, Reach and Power
Intercept Network Controller-10G switch delivers Fast Ethernet speeds over Coax with 1,000ft reach. It is designed to support the most demanding IP endpoints with plenty of bandwidth to spare. Intercept Network Controller-10G switch provides robust network performance at any distance.
Security, Supporting Zero Trust Requirements
- 802.1x Port-Based Authentication, with supported EC adapter only*
- MAC security – static MAC locking per port
- Authentication, Authorization, and Accounting (AAA) with TACACS+ or RADIUS
- Remote monitoring
- SSH/SSL
- Multi-level user privilege controls
- Multi-layer access control lists
MoCA-based Copper/Coax Gigabit Access Products
Fiber-like Copper/Coax Gigabit Access Solution
Hospitality Gigabit Experience
IPTV/Wi-Fi Distribution over Existing Cable
Surveillance Move to Modern the Easy Way
Gigabit Home Networking
Cloud Network Controller
Write one or two paragraphs describing your product or services. To be successful your content needs to be useful to your readers.
Start with the customer – find out what they want and give it to them.
Grafana
Write one or two paragraphs describing your product or services. To be successful your content needs to be useful to your readers.
Start with the customer – find out what they want and give it to them.
Speed, Distance & Convergence
SAT + EOC 1 Gbps
400 - 900 MHz - Low
CATV + EOC 1 Gbps
1125 - 1675 MHz - High
EOC 2.5 Gbps
1050 - 1675 MHz
